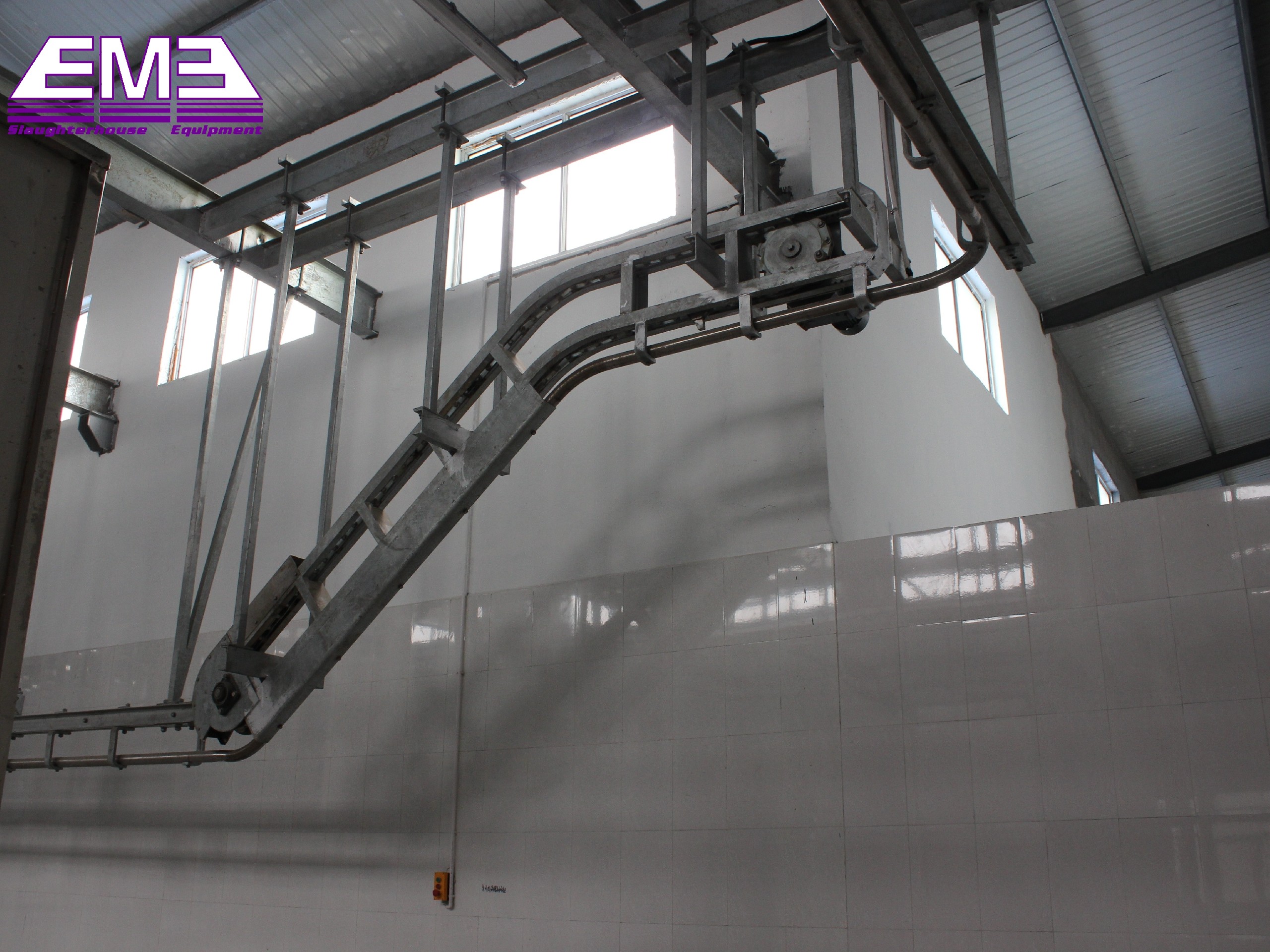

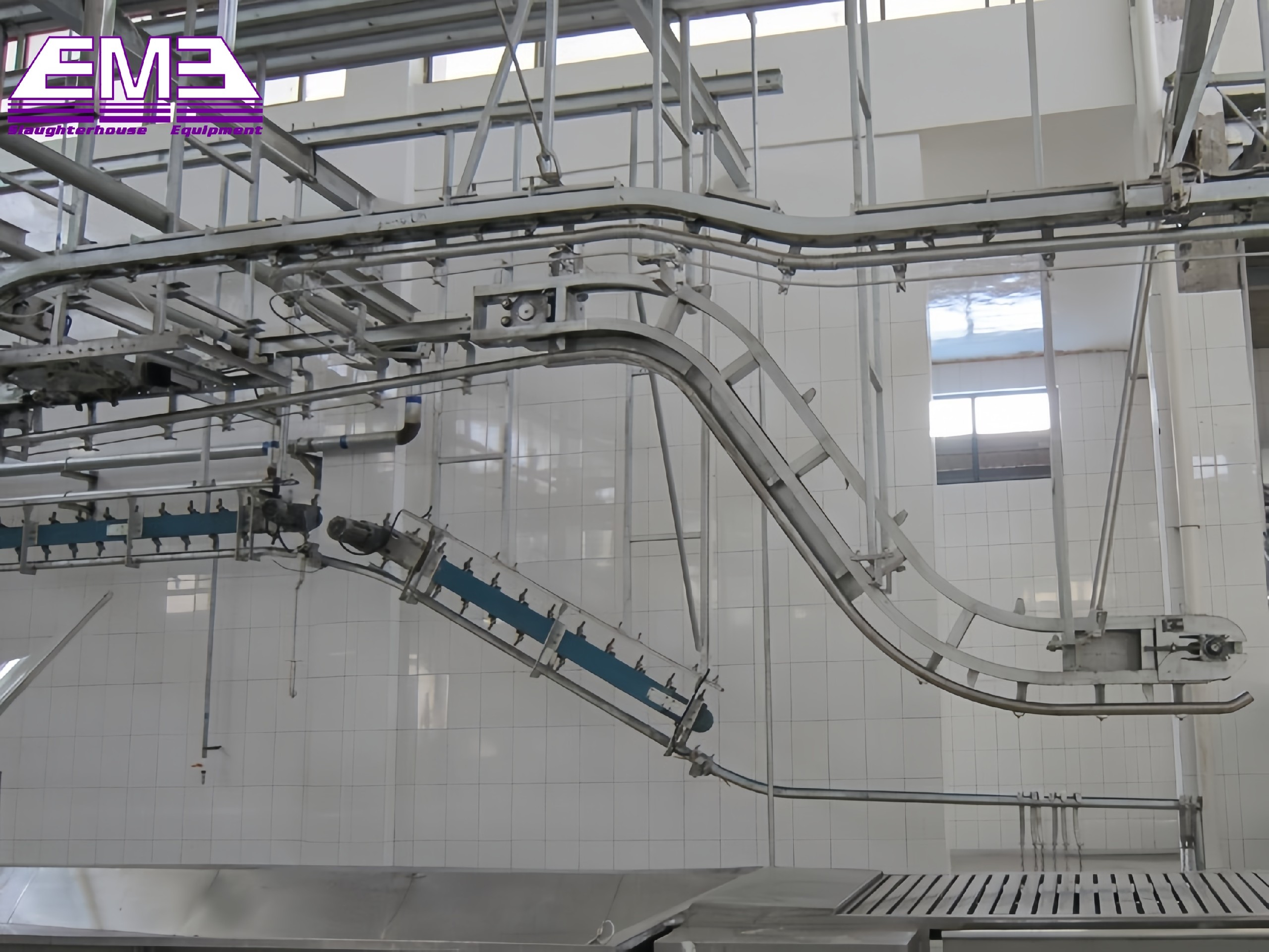

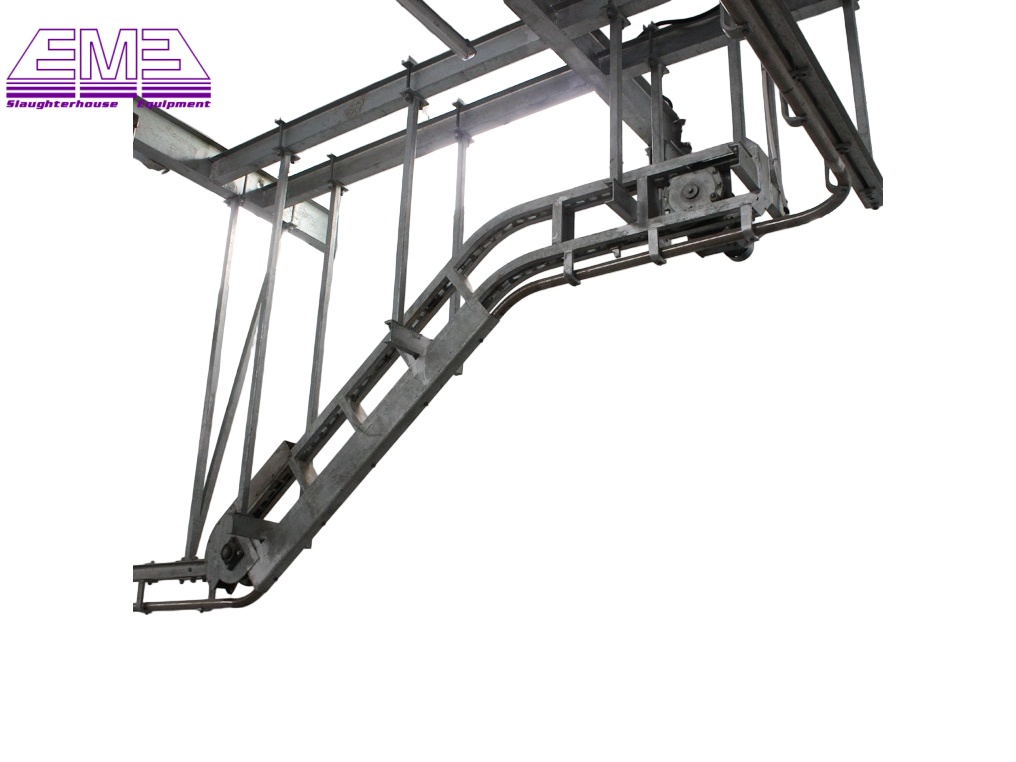

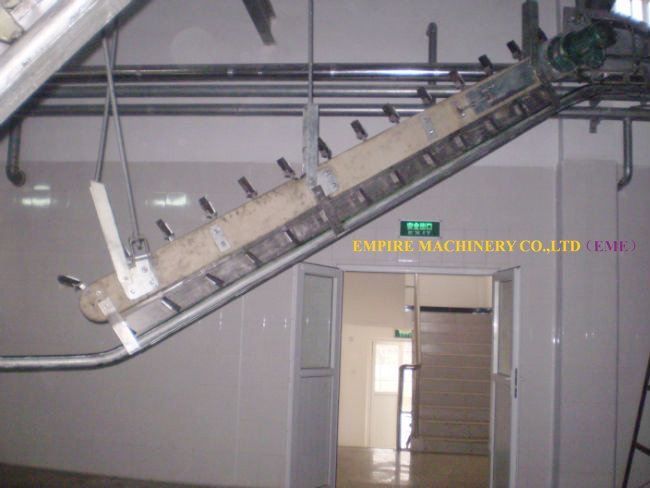

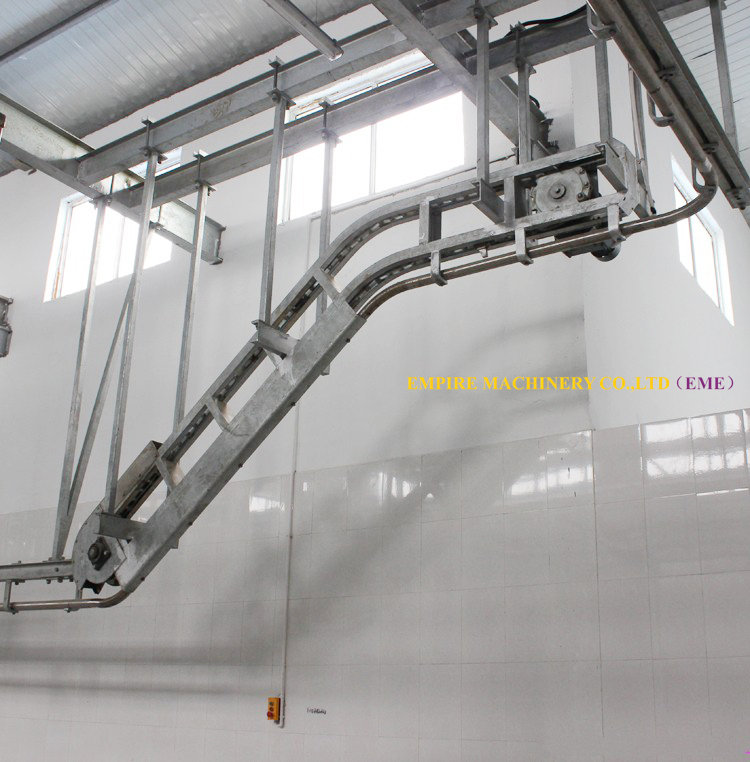

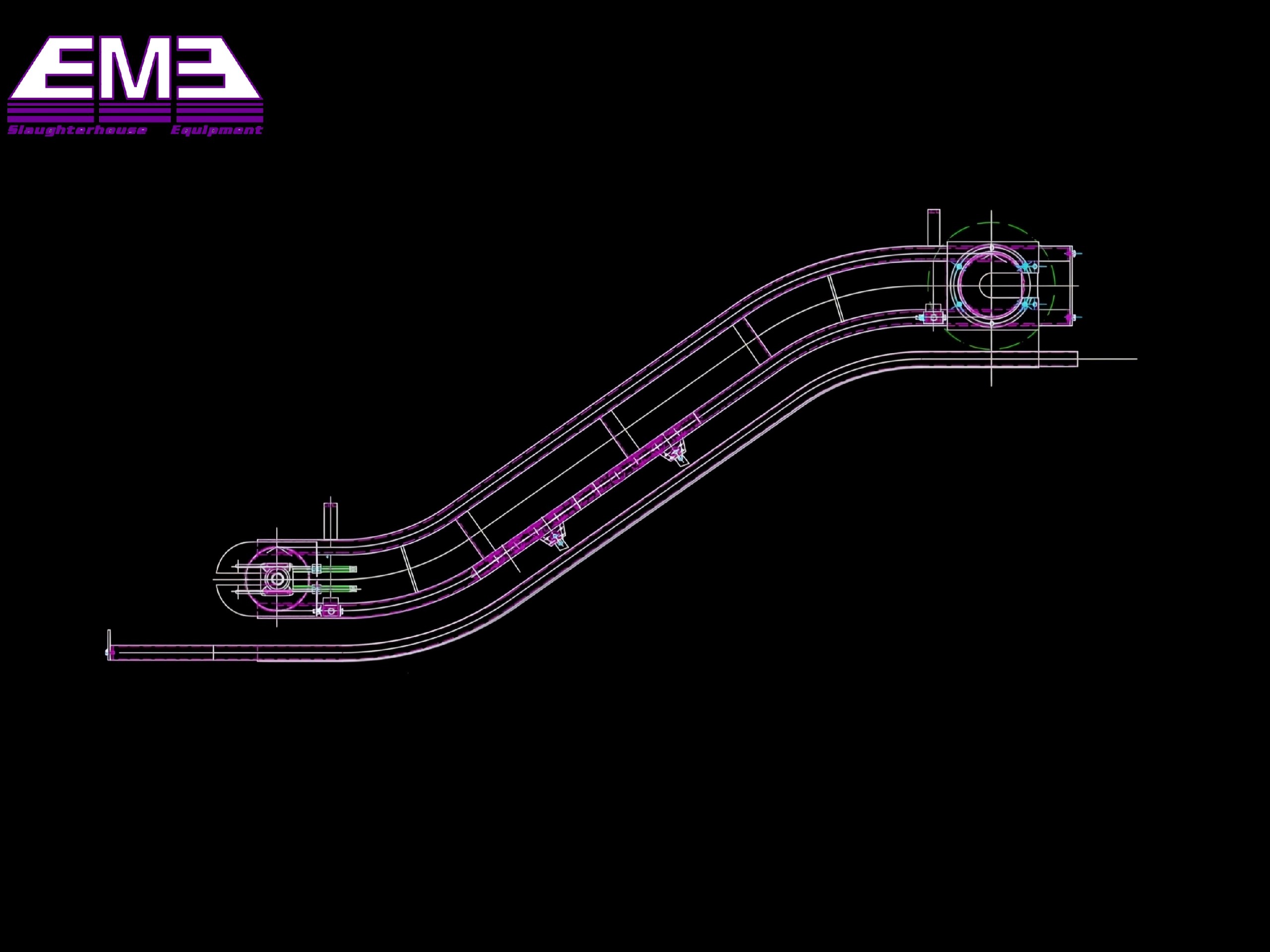

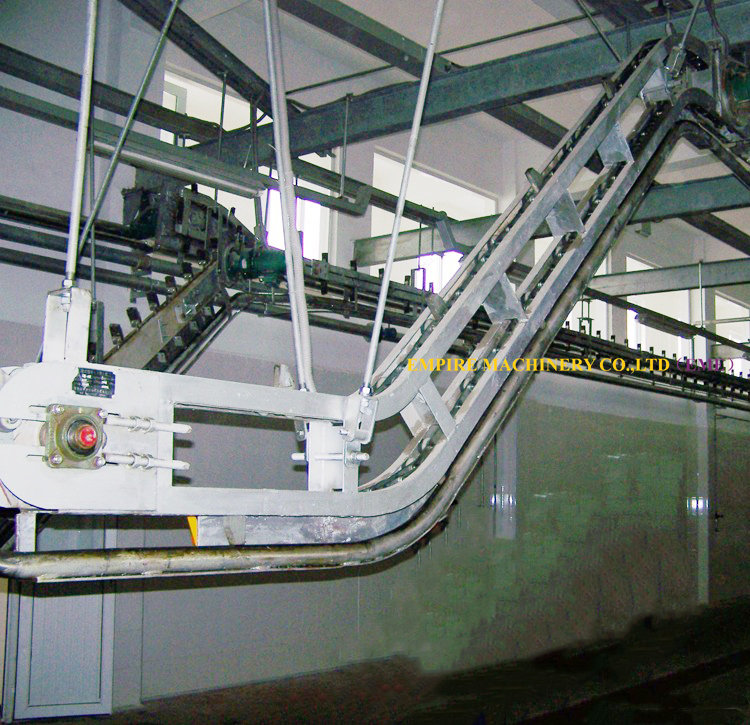

Cattle bleeding slope lifting machine
Cattle bleeding slope lifting machine
Cattle bleeding slope lifting machine
Cattle bleeding slope lifting machine

Cattle bleeding slope lifting machine



Watch Video
Cattle bleeding slope lifting machine
Project Proposal Require
Contact Supplier
Product Details
Model: QE-C109-II
Application:Which mainly used to cattle carcass to convey rail for bleeding
Rated voltage/Phase/Frequency:380V/3P/50HZ or 220V/3P/60HZ (Customized)
Power:3Kw
Lifting height:3.6-5m
Capacity:100 Heads per hour
Dimension:3600*650*550mm (L*W*H) (Customized)
Component and material:

Electric motor and electric controlling device

SUS304 or Hot galvanized steel main frame

 (Fabricated using #8 channel steel with interlocking joints)

SUS304 or Hot galvanized steel plate chain with nylon roller

SUS304 or Hot galvanized steel tensioning device

SUS304 tube track (φ60*3mm) or dual track

( 40*40*4mm) or flat track (60*10mm)

Low pressure control switches


Project Proposal Require
